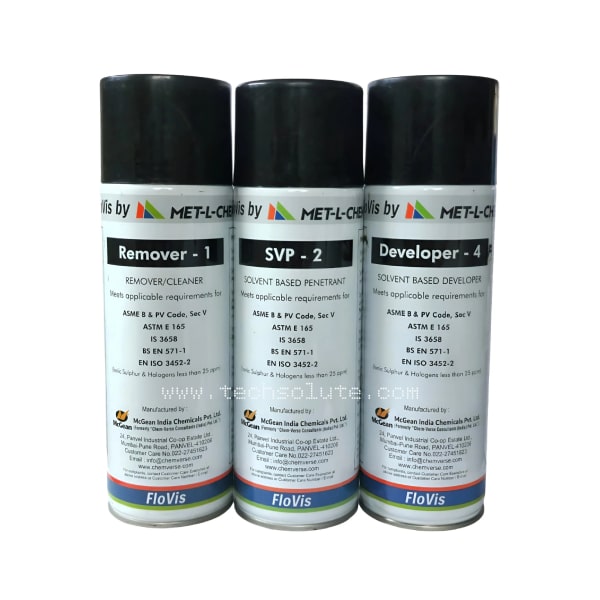

FloVis Non Destructive Crack Detection Kit 500ml

• Helps detection of microscopic cracks on metals that cannot be visibly located by naked eyes.
• Equally effective on parent and weld metal both.
• Excellent source of non-destructive examination for surface flaws.
• Extremely low Chlorine and Sulphur content.
• Handy aerosol packs help consume entire product contents in the can.
• Due to extremely low chlorine and sulphur contents products can be safely used on stainless steel, nickel, monel and other exotic materials.
• Detects cracks as low as 30 microns and passes 2 x 50 microns Japanese Ni-Cr Test Panel.
• Ozone friendly propellant promotes healthy environment.

The product conforms to ASME B &PV Code Sec. V, ASTM E-165, IS:3658-1999, BS EN 571-1 & EN ISO3452-2.

• For detection of surface flaws on dies, moulds, tools, jigs and welds on pressure vessels subjected to pressures and thermal cycles.
• For forgings, castings, high and low temperature equipment.
• As a pre-test during welding layers to prevent ultimate failures in radiography.
• Non-destructive examination of finished components after welding, forging, upsetting, swaging, extruding cold and hot forming and after final heat treatment.
• Industries include Forging, Fabrication, Defence, Railways, Steel and many others.

1. Spray Remover-1 (Cleaner) and clean the surface thoroughly with good quality cotton waste or soft cloth.
2. Spray SVP-2 (Dye Penetrant) on the surface and allow the penetrant to remain on the surface for a minimum of 10 mins. This dwell time will allow the dye to penetrate deep inside the discontinuities.
3. Remove excess penetrant from the surface with cotton waste. Spray minimum quantity of Remover-1 and repeat cleaning with cotton waste/cloth.
4. Spray a thin uniform layer of Developer-4 (Developer). Allow the penetrant to bleed for 10 minutes. Surface defects like pinholes, cracks, porosities etc. will be visible as pink indication against white background after about 10 minutes.
